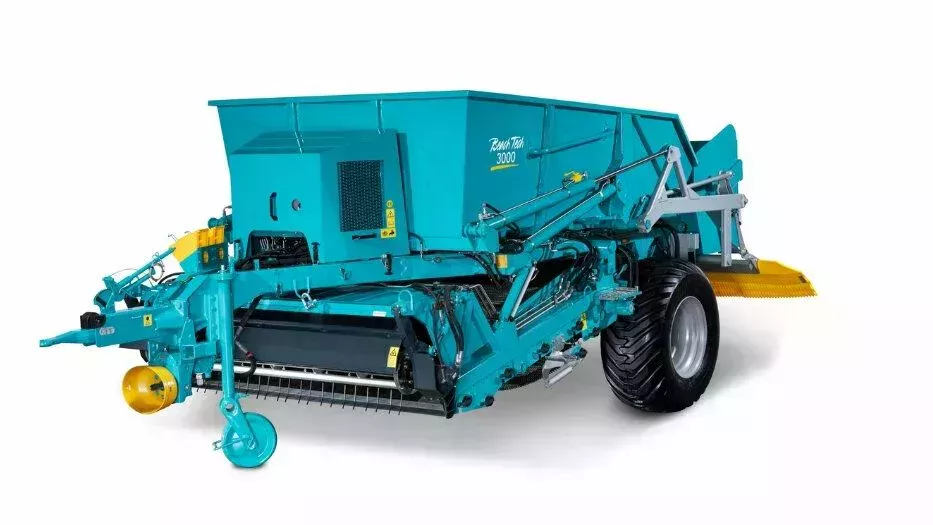

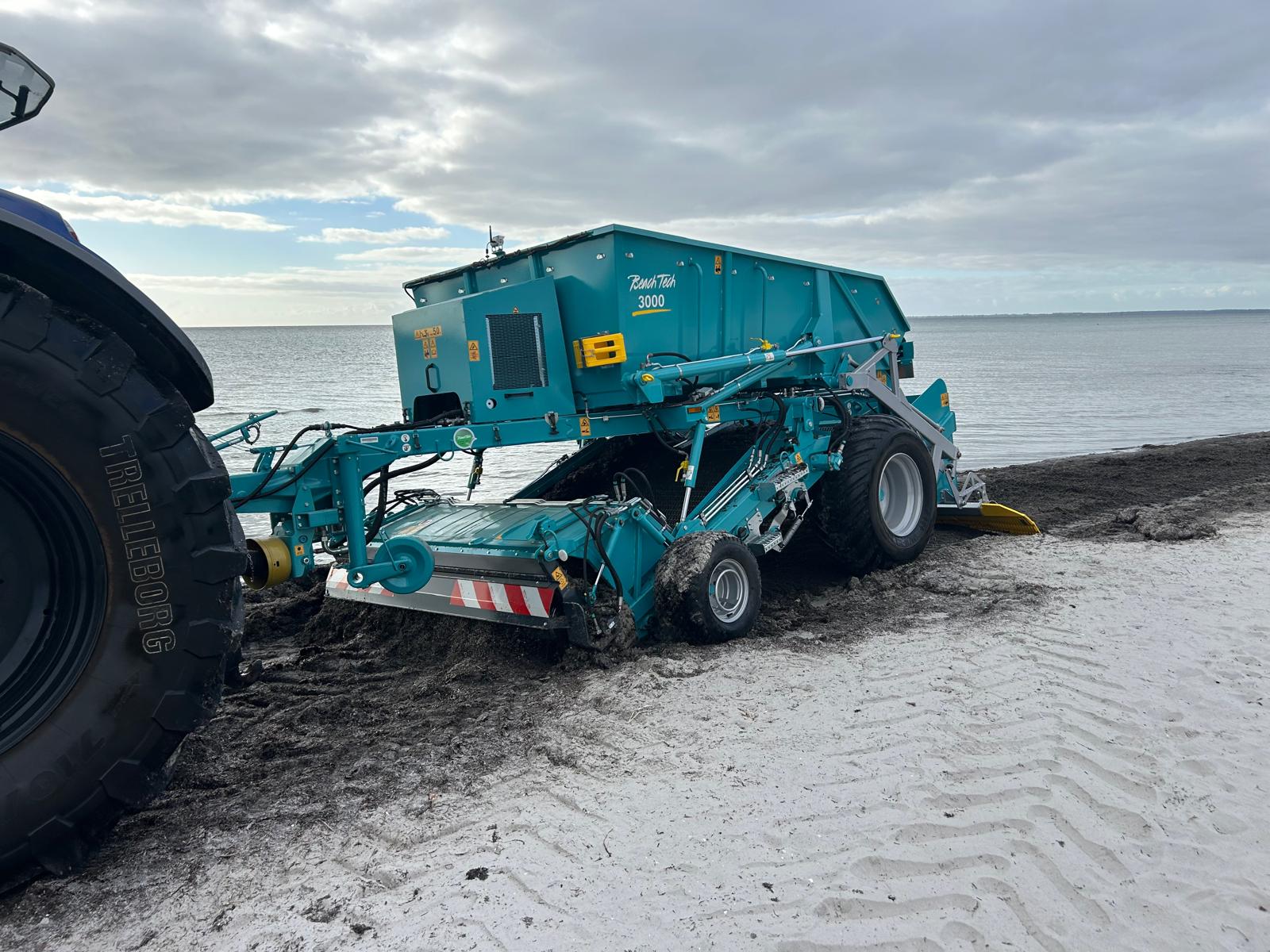

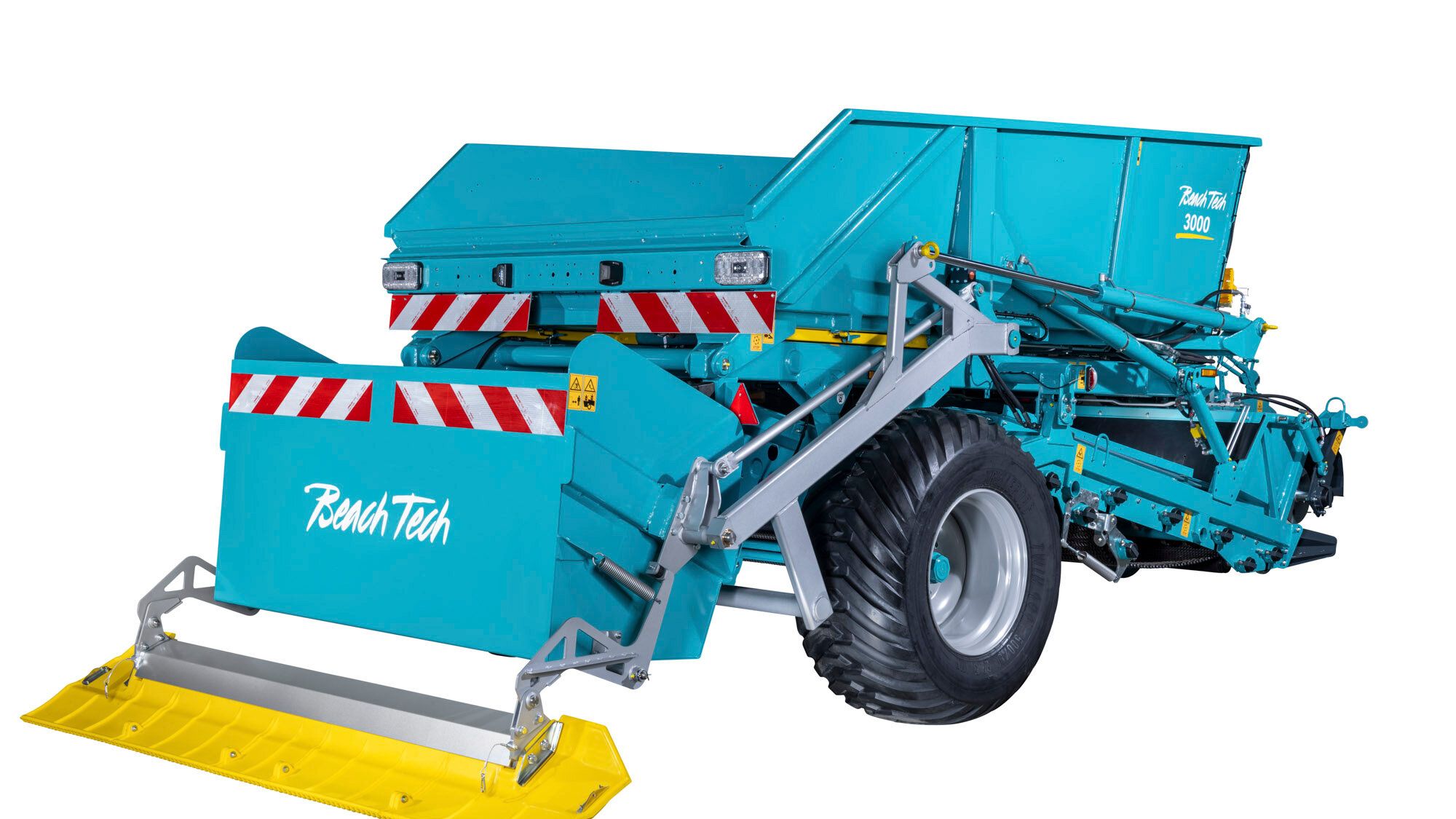

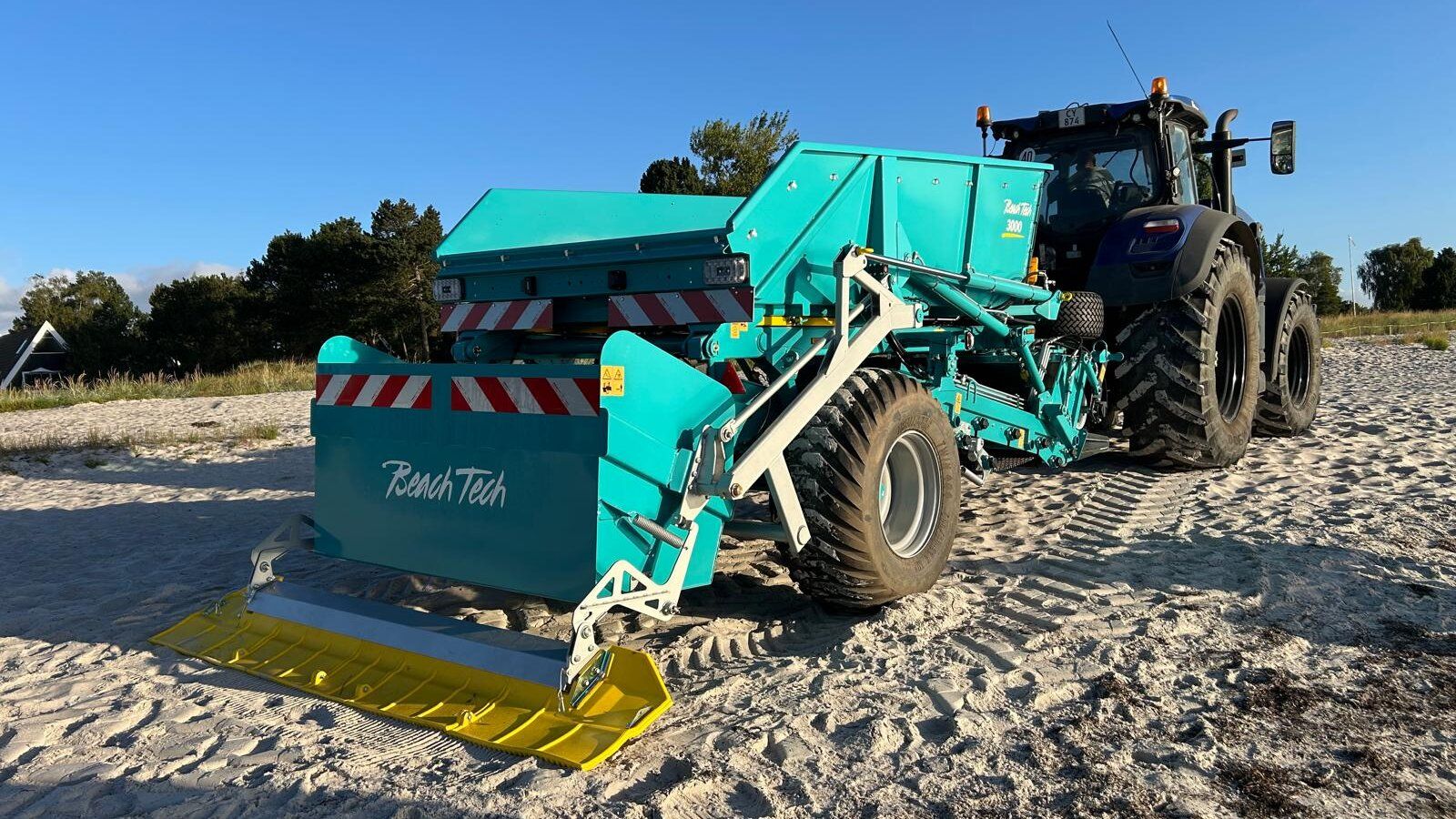

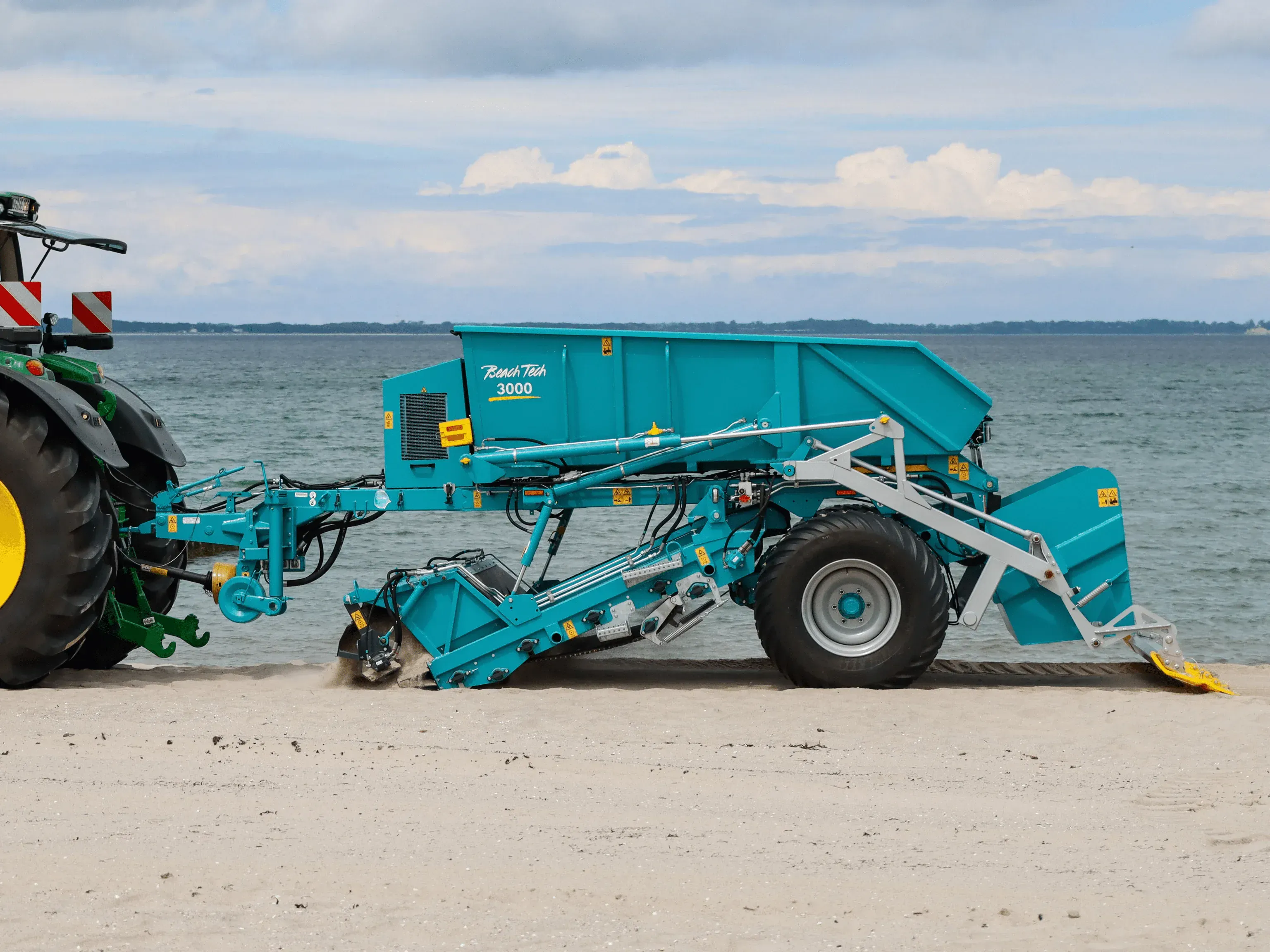

BeachTech 3000
The jumbo beach cleaner
The two-piece vibrating screen enables particularly high screening performance.
4.7 m³ loading capacity for large quantities and voluminous debris with few intermediate stops to the unloading point. The BeachTech 3000 is a beach cleaner and haul vehicle in one!
Even large beaches are cleaned quickly and efficiently with an area coverage of up to 30,000 m²/h (7.4 acres/h).
Highlights
Additional collection hopper
The BeachTech 3000 is a beach cleaner and haul vehicle in one. The contents of the collection hopper can be emptied directly into the main dump body. Instead of driving to the container or dumping point, only a short stop is required. This results in significantly shorter dumping times and a higher output per hour. The dump body is made of aluminum and is therefore particularly light.

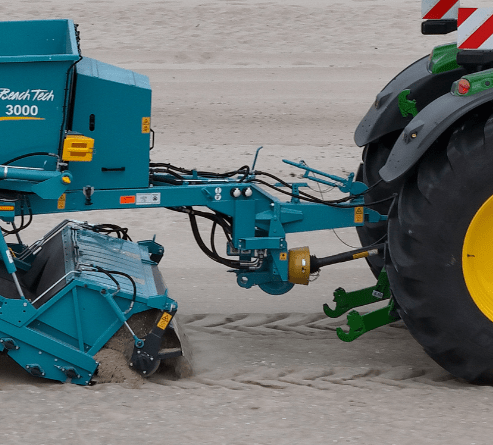

PickUp blade with spring tines
The PickUp blade with spring tines assists in picking up the sand into the beach cleaner. The spring tines can be aligned differently via a hydraulic cylinder. The operator can thus switch continuously between raking, screening and mixing techniques and adapt optimally to the prevailing conditions.
Area coverage
With a working width of 2.50 m and the particularly high loading volume, the BeachTech 3000 achieves area outputs of up to 30,000 m² per hour. (7.4 acres/h).
2-belt screening system
The BeachTech 3000 has two screen cassettes through which the sand to be cleaned is screened out. The material to be picked up is conveyed to the first screening belt during travel, where the sand is screened out by vibration. The waste material is then conveyed by the second belt into the collection hopper. The result: maximum screening capacity and effective sand cleaning!
Finisher

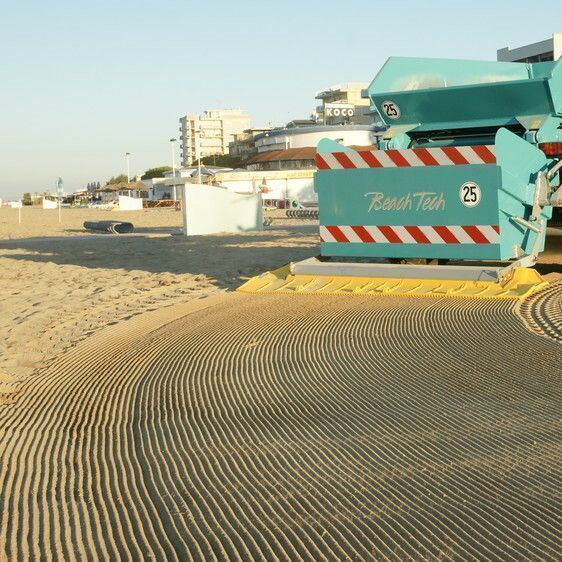

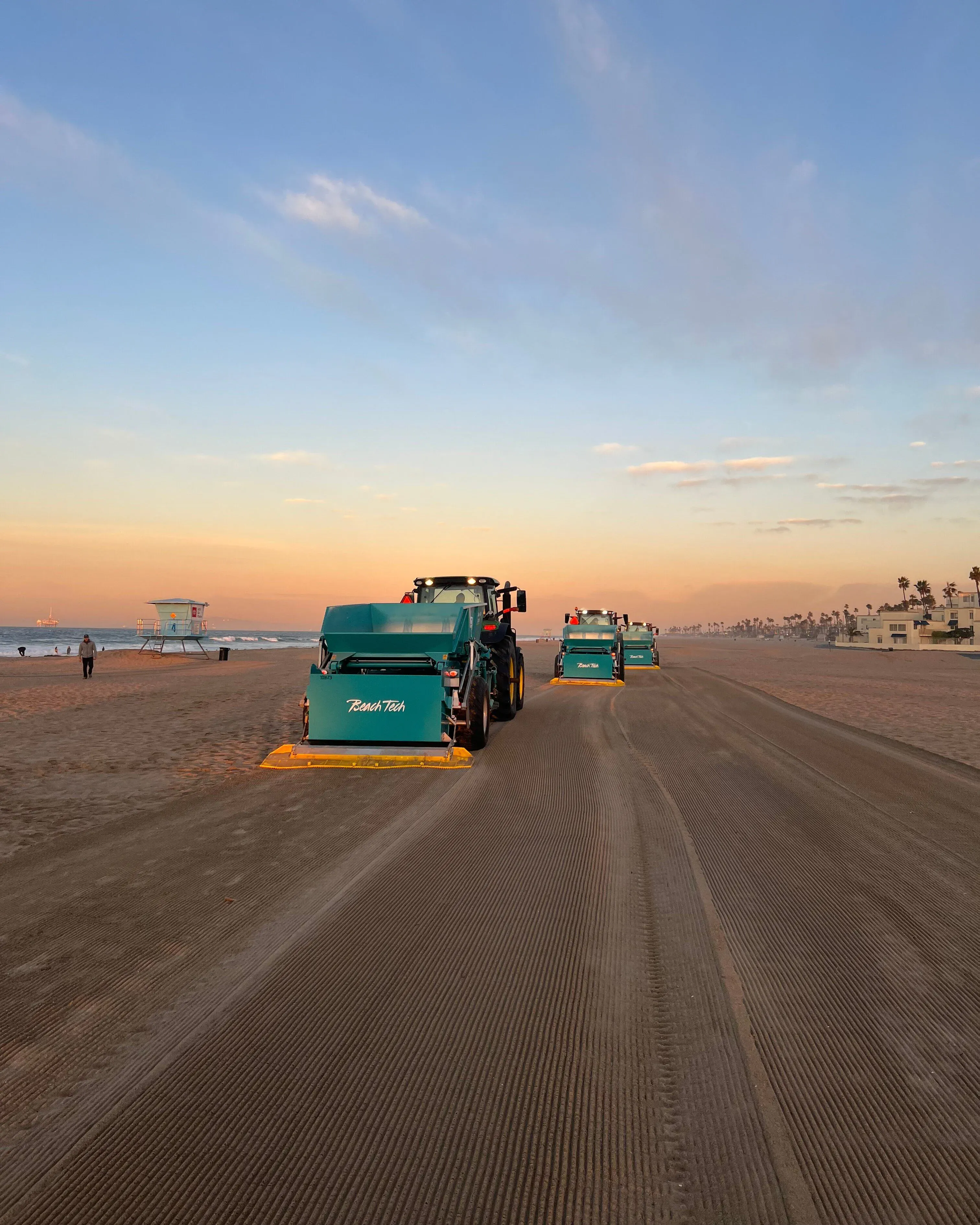

The finisher smoothes the sand surface and compresses it slightly. In doing so, it leaves behind the grooved pattern - the signature of a cleaned and inviting beach.
High Flotation tires
High Flotation tires for high payloads at low air pressure. The special tires provide the beach cleaner with the best possible traction on soft surfaces.
Easy attachment
To operate the BeachTech 3000, a tractor with minimum 100 hp (depending on sand conditions) and a PTO speed of 1,000 rpm is required.
Operating control terminal
All vehicle functions can be controlled via the operating terminal in the tractor cab, e.g. lifting and lowering the collection hopper or setting the working depth of the pickup blade. This enables comfortable 1-person operation.
Technical Data
Effective beach Cleaning
Why you should rely on BeachTech for professional beach cleaning!
Perfectly cleaned beaches
The BeachTech 3000 works with Rotary Screen Technology. The sand is picked up by the pickup and transported to the rotating screen belt. Here, even the smallest litter particles, such as bottle caps, shards or cigarette butts, are screened out and forwarded to the second screen belt. Larger items, such as stones or plastic waste, are also reliably collected. The different settings of the spring tines allow the operator to switch between screening, raking, and mixing technology and thus react quickly to special conditions, such as wet, heavy sand.
Unbeatably efficient
The BeachTech 3000 is a beach cleaner and haul vehicle in one. With the main loading body and the large collection container, it has a loading volume of 4.7 m³ (6.15 cu.yd.). The collection hopper can be easily emptied into the dump body - instead of driving to the container or unloading point, all that is required is a short stop. With its unbeaten loaded capacity, the BeachTech 3000 is therefore particularly well suited for use on large, extensive sand areas.
Equipment
Spring tines:
Low maintenance, individually replaceable
Screen belts:
Various mesh sizes
Eccentric shafts:
Various shapes, diameters and profiles
Maintenance-free bearings:
No more need for re-greasing
Reversing valve:
Direction change of the screen belt possible
- Camera system
for better view of the pick-up shaft - Feeler wheels
for constant depth control - Wind screens
on the side of the screening belts - Spraying device with 400l (106 gal) water tank
for dust reduction in dry sand conditions
