Soil preparation for the production of sod

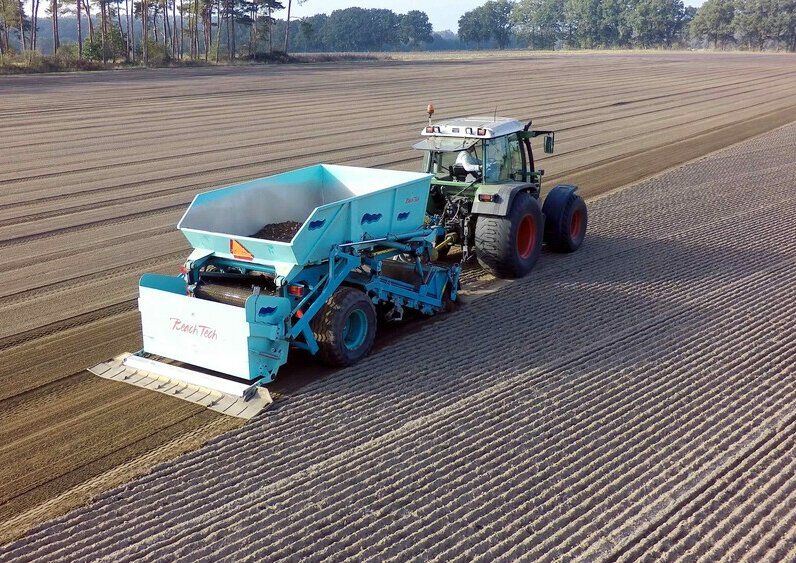

Use BeachTech for soil preparation in the production of sod. Before leveling and sowing, BeachTech mobile sifters remove all stones from the soil. Thanks to the various mesh sizes of the screening belts, BeachTech picks up small to medium-sized stones reliably. The sod thus becomes even smoother and can be lifted off without creating holes. At the same time, you prevent damage to your machines.
At a maximum area coverage of up to 30,000 m² per hour, BeachTech offers efficient solutions for soil preparation.
The stone-free, smooth surface is a guarantee for high-quality sod.
Removing the stones reduces the wear on the blades of other implements.
How BeachTech Mobile Sifters work
The height-adjustable pick-up blade picks up soil and stones from the top layer of soil.
Soil and stones are transported onto a rotating or vibrating sieve. The stones are sieved out and transported into the collection container.
The sieved soil falls back onto the ground. The stoned and aerated soil enables optimum growth of the reseed.
BeachTech screening machines
BeachTech screening machines are connected to the tractor via a slip-on pump or PTO shaft. Our vehicles are available in various working widths from 1.20 m to 2.50 m, so that area outputs of up to 3 ha per hour can be realised.
| Working width | Volume of the collection container | Requirements for the tractor | |
|---|---|---|---|
| BeachTech 1000 | 1.200 mm | 0,4 m³ | 30 PS 540 U/min |
| BeachTech 1500 | 1.600 mm | 1,5 m³ | 65 PS 540 U/min |
| BeachTech 2000 | 1.850 mm | 1,5 m³ | 70 PS 540 U/min |
| BeachTech 2500 | 2.500 mm | 2,8 m³ | 80 PS 540 U/min |
| BeachTech 3000 | 2.500 mm | 4,7 m³ | 100 PS 1.000 U/min |
